Solid State Anaerobic Digestion

Traditionally, anaerobic digestion has been limited to liquid, slurry and semi-solid materials.  Recent engineering advances have opened the door for conversion of dry, stackable materials such as municipal solid waste, food waste and yard waste to biogas. These new systems are called solid state digesters.



Process

Methanogenesis is the rate limiting step in digestion of most organic materials.  Methanogenesis is the final step of anaerobic digestion, in which volatile fatty acids (VFA), Hydrogen (H2), and Carbon dioxide (CO2) are converted to methane (CH4). Fermentation, on the other hand, is the limiting step in digestion of lignocellulosic materials.  Fermentation is the liquefaction of solid organic matter to the precursors (VFA, H2, and CO2) of methanogenesis.  Fermentation of lignocellulosic materials, such as cotton gin trash and municipal solid waste, occurs too slowly for efficient digestion in liquid reactors.   Solid State Digestion works by separating fermentation from methanogenesis (Figure 1).



Diagram of the basic process of solid state anaerobic digestion.



Figure 1. Basic process of solid state anaerobic digestion.



Fermentation takes place as nutrient rich, neutral pH effluent trickles through stacked solids.  Liquid is not allowed to accumulate during fermentation, so solid state anaerobic digestion is sometimes called dry fermentation. But, this is only half of the process.  Biogas is formed from the low pH, high VFA liquid leached from the stack in wet methanogenesis.  Fermentation and methanogenesis can take place in the same reactor, or they may occur in separate reactors.  Removing leachate from the fermenting stack is important.  If acid accumulates during dry fermentation, the stack will “pickle.”  The result is silage.



Digestion System Classification

Most solid state digestion systems are patented.  We can distinguish between systems by the type of reactor in which dry fermentation takes place (bin or silo), and whether methanogenesis takes place in the same or different reactor than dry fermentation (single phase or two phase).



Fermentation Reactors



Bin Reactor

These reactors are essentially boxes with false bottoms (Figure 2).  Dry fermentation takes place in material stacked on top of a perforated floor.  Leachate passes through the pile and is collected below the floor.   The bin shown in Figure 2 is a single phase reactor, because leachate undergoes methanogenesis as it is collected in the bottom of the bin.  In a two phase system, leachate would be pumped to a separate reactor for methanogenesis.  In either system, effluent from methanogenesis is sprinkled on top of the stacked organic matter.

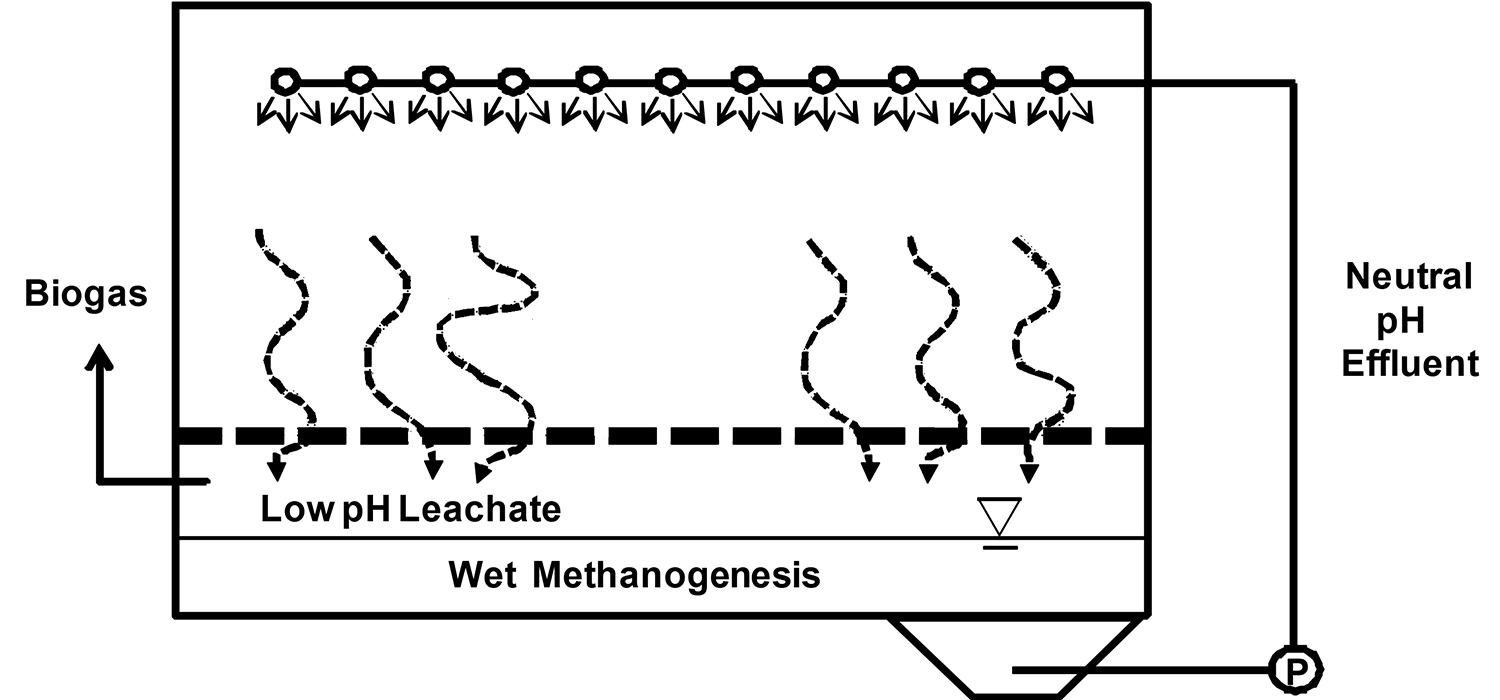

Schematic drawing of a single phase, bin type dry fermentation reactor.



Figure 2. Schematic drawing of a single phase, bin type dry fermentation reactor.



Bin reactors are usually very large; therefore, they are sometimes called Bay Reactors. Bay reactors are large enough for trucks and loaders to drive into and stack material inside the box. They are sealed with large air-tight doors (Figure 3). Once the stacked material has been thoroughly fermented, it is either removed as is or composted in place by blowing air through the false bottom. After the stack has been processed, it is removed by the same equipment used for stacking.



Air tight bay doors of beckon reactors in open and closed positions.





Figure 3. Air tight bay doors of BEKON reactors in open and closed positions (from www. bekon.eu).









Silo Reactor

A silo reactor is a large, upright cylinder. Stackable organic material is augered to the top of the silo, and digested material is removed from the bottom. The cylindrical shape of silo reactors allows for efficient leaching through the length of the pile. A two phase silo reactor system is shown in Figure 4. In this arrangement, methanogenesis takes place in a separate reactor and effluent is sprinkled on top of the pile stacked in the silo. Digested solids may be composted by blowing air upwards through the silo. Silo reactors also exist in single phase configurations. The particular system shown in Figure 5 mixes incoming dry material with leachate before pumping to the top of the silo.



Schematic drawing of a two-phase, solid state anaerobic digestion system using a silo dry fermentation reactor.



Figure 4. Schematic drawing of a two-phase, solid state anaerobic digestion system using a silo dry fermentation reactor.



Single phase silo reactor and biogas storage.





Figure 5. A DRANCO single phase silo reactor used to digest solid municipal waste in Germany. Sphere in foreground is biogas storage.







Methanogenesis Reactors

Almost any type of anaerobic digester can be used to convert leachate to biogas in wet methanogenesis.  However, high-rate, low-solids reactors, such as Fixed Film, Upflow Sludge Blanket (UASB) , and Anaerobic Sequencing Batch (ASBR) reactors, are generally employed due to their high efficiency.  More information on types of anaerobic digesters can be found in OSU Fact Sheet BAE 1750, Anaerobic Digestion of Animal Manures: Types of Digesters.



Summary

Solid state anaerobic digestion is a two-step process using dry fermentation and wet methnanogenesis to produce biogas from dry stackable materials.  Fermentation takes place in bin and silo reactors.  Systems that complete fermentation and methanogenesis in the same reactor are called single-phase systems.  Two-phase systems use a separate reactor for fermentation and methanogenesis.



Douglas W. Hamilton
Waste Management Specialist
Biosystems and Agricultural Engineering
