Using harvest aids in Oklahoma grain sorghum production

Historically, sorghum producers have allowed the crop to terminate and senesce naturally. However, an increased number of grain sorghum hybrids with the stay-green trait are being planted as a means to combat environmental stressors. This stay-green trait can create challenges for growers by slowing the rate at which the crop dries down. This can potentially lead to increased yield loss from harvesting higher amounts of green biomass or from pest pressure (i.e. bird damage) associated with prolonged field drying. Furthermore, grain sorghum is a crop that relies on tiller production to help improve yields in lower plant populations or thinner stands. Favorable conditions later in the production season can result in the sorghum crop increasing late-season tiller production. This can result in a wide range of maturity present in the field when the primary stems are mature. The use of harvest aids has potential to overcome several of these challenges.



What are harvest aids

Harvest aids are chemicals that, when applied at or near maturity, help prepare the crop for harvest. The use of these chemicals is more common in indeterminate crop production systems, such as soybean and cotton production. The chemicals have very limited use in grain sorghum production, especially in the southern Great Plains. Several chemicals are available as harvest aids. Plant growth regulators are very common harvest aids. These chemicals are used to control growth or physiological functions within the crop, such as ethephon used in cotton production to help promote fruit ripening. Other common harvest aids are herbicides or desiccants, where the primary focus is to increase the rate of plant drying.



In sorghum production, all labeled harvest aids are either herbicides or desiccants. Due to the activity within the plant and the timing of application, these harvest aids have very little influence on the grain itself but affect the vegetative biomass of the plant. Therefore, they have little to no impact on grain moisture. Three chemicals are currently labeled for use as a harvest aid for sorghum production: glyphosate, carfentrazone and sodium chlorate (Table 1).



Table 1. Labeled harvest aids for grain sorghum production.
Harvest Aid Application Rate Pre-harvest Interval
Carfentrazone 1/2 oz/ac + COC @1% 3 days following application
Sodium Chlorate Depends on formulation; check specific label 7 to 10 days following application
Glyphosate Desired amount of 1.5 lbs a.i./ac; rate will depend on formulation 7 days following application



Carfentrazon

(Tradename Aim® EC or Quicksilver®) is a broadleaf herbicide. While used as harvest aid, as discussed previously, it will work to desiccate or terminate the crop. The primary goal as a harvest aid of this product is to assist in the termination of weeds at or near harvest. Carfentrazone provides excellent control of weeds, such as morning glories, and can allow for increased harvest efficiency. The most common use for this product is tank mixed with other harvest aids to allow weed control at harvest paired with desiccation of the crop through other means.



Sodium Chlorate

Sodium chlorate is a true desiccant and will not kill the crop but merely dry down any plant material that it contacts. As such, plant dry down can be very rapid but may be slowed by cooler daytime temperatures. Because of this rapid drying, growers should be prepared to harvest as soon as the allotted pre-harvest interval has elapsed (7-10 days) to minimize excessive lodging. One of the biggest challenges with the use of sodium chlorate is, since it is only a desiccant, that regrowth can occur quickly if conditions are favorable. This may require further management if harvest is not timely. The use of sodium chlorate has been increasing, particularly when grown for seed production, as this product can be used without major risk of harming germination of the harvested seed. Furthermore, this product can assist in the management of weeds that may interfere with harvesting operations, especially problematic grassy weeds. However, similar to sorghum, weed regrowth may occur and should be managed so that weeds will not become an issue in future cropping cycles. Growers utilizing this product should consult the label for mixing partners and clean-out procedure as mixing sodium chlorate with some products may present a fire or explosion risk, and long-term use without proper cleaning can result in corrosion of the equipment.



Glyphosate

Glyphosate is considered to be the industry standard for harvest aids in sorghum production. As opposed to the other two products, glyphosate will kill the sorghum plant as well as many other weeds that are susceptible if it makes contact. The major issue with glyphosate is the time it requires for complete desiccation and the impact that environmental conditions can have on the drying period. Glyphosate has a pre-harvest interval of seven days, but in most Oklahoma production systems it will require closer to 10 to 14 days until the crop is suitable for harvest. Unlike sodium chlorate, with proper application, very little regrowth will occur, and growers should also expect good activity on late-season weed populations, especially Johnsongrass. As this product will completely terminate the plant, lodging is a concern; especially in those hybrids without the stay-green trait or with high stalk rot infestations. Therefore, growers should section off fields that can be harvested within a one-to two-day period and have multiple desiccation dates to match your harvesting speed.



When to apply harvest aids

The most important aspect of utilizing harvest aids is applying them at the proper time. Using the harvest aid too early will result in rapid plant dry down but un-harvestable grain, while too late an application could reduce the economic value of the applications as well as reduce grain yields and test weights due to prolonged pre-harvest periods. A harvest aid should not be applied any earlier than physiological maturity, or black layer (Figure 1). At this stage, most grain moisture will be between 25%-35%. However, with some cultivars and in certain environments, grain moisture can be as high as 50%. As harvest aids have little impact on grain moisture (Figure 2 and 3), harvest aids should be applied based on physiological maturity of the crop and near-harvestable grain moisture. Glyphosate, as it takes longer to completely dry down the biomass, should be applied around 30% grain moisture. During the 10 to 14 days typically required for the plant to desiccate, the grain moisture should decrease to appropriate levels. Since sodium chlorate desiccates quicker, lower grain moisture may be required. However, it is important that while biomass may be suitable for harvest, pre-harvest intervals still require 10 days between application and harvest. Therefore, grain moisture should be <30% for sodium chlorate applications.



Three grain sorghum seeds, with the first one being a green color, the middle being a yellow color and the last one being a red color.

Figure 1. Stages of maturity for grain sorghum seed, example on the far right is at black layer and safe to make harvest aid applications.

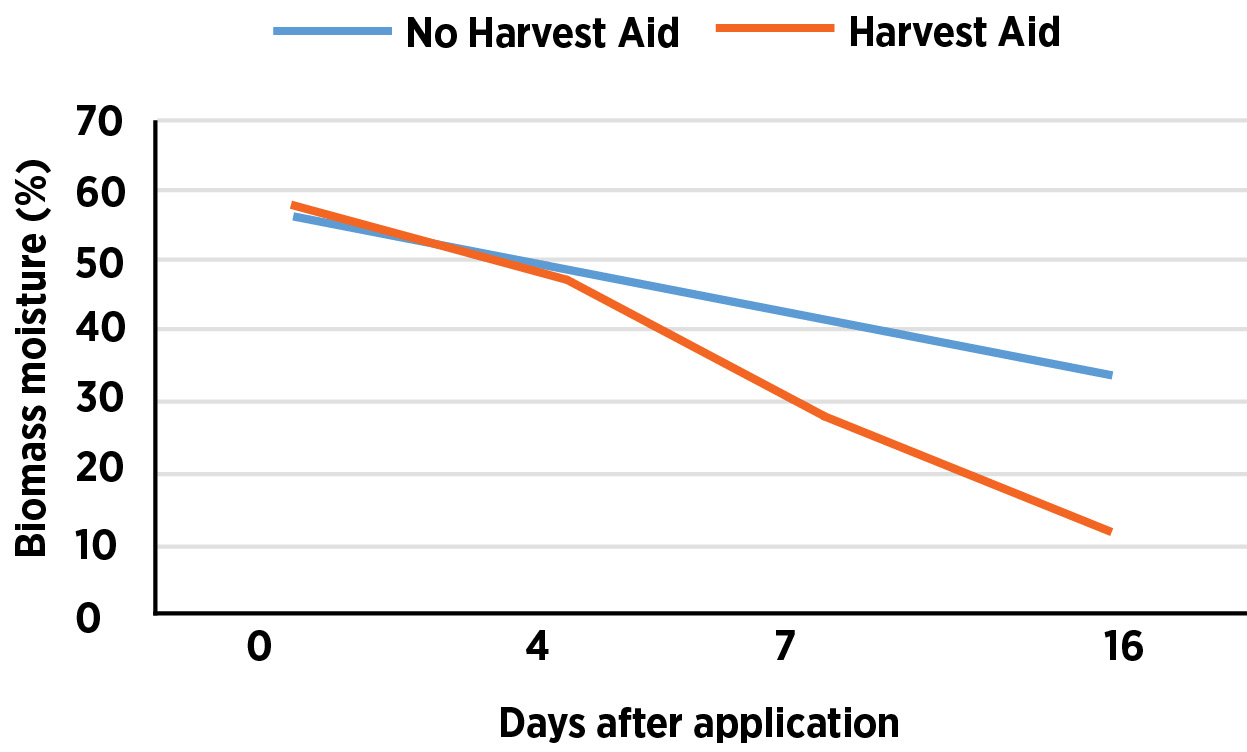

A line graph with a blue line (indicating no harvest aid) and an orange line indicating (harvest aid). This line graph shows the days after application from 0 to 16 and they blomas moisture % from 0 to 70.

Figure 2. The impact of a glyphosate harvest aid on sorghum biomass moisture.

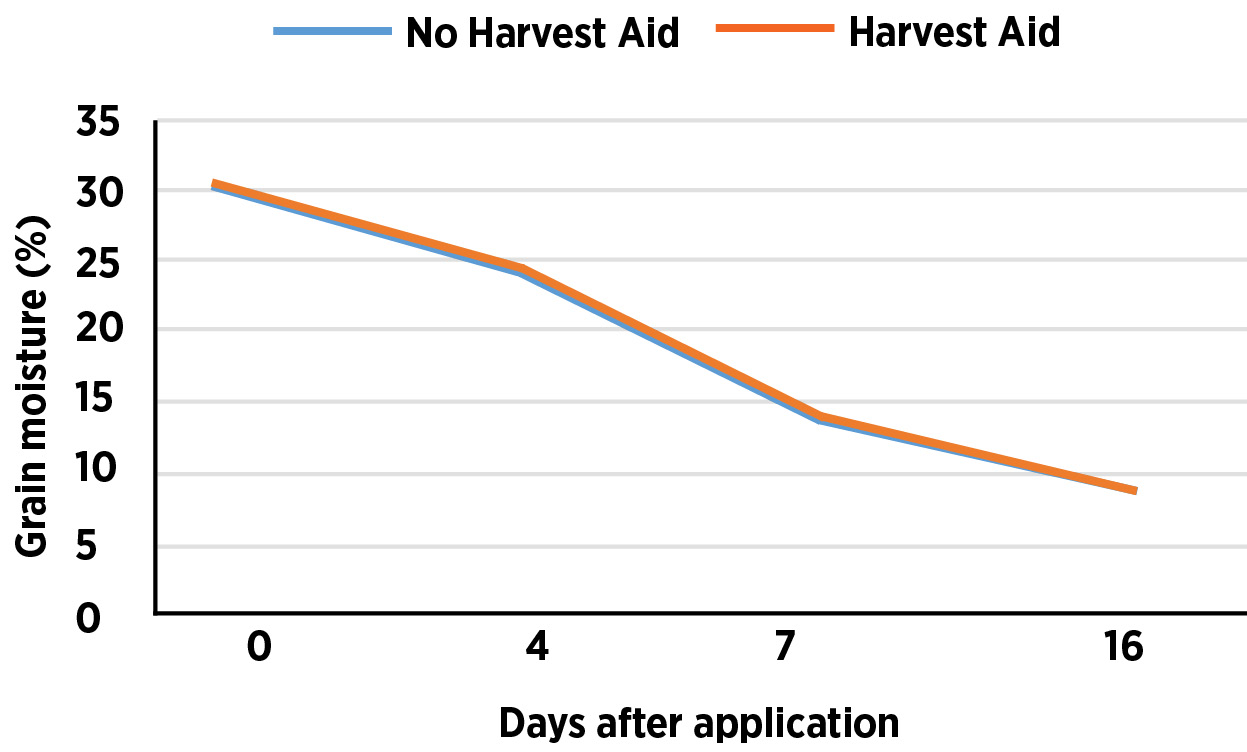

A line graph with a blue line (indicating no harvest aid) and an orange line indicating (harvest aid). This line graph shows the days after application from 0 to 16 and they blomas moisture % from 0 to 70.

Figure 3. The impact of a glyphosate harvest aid on sorghum grain moisture.



Benefits of harvest aids have in Oklahoma

Before going into the individual benefits, it must be stated that the benefits you achieve from harvest aids will vary. Spray coverage is vital in order to get satisfactory results. Apply these products with a minimum of 10 gallons of water, with 12 to 20 being preferred, via ground equipment and a minimum of 2 gallons, with 4 to 10 gallons being preferred, by aircraft.



Crop yield:

Harvest aids have no impact on yield potential of sorghum. Since these applications are made following physiological maturity, total yield production has been set and crop dry down is the only aspect remaining. However, harvest aids have the potential to increased realized yields. This realized yield is the yield potential minus any losses associated with prolonged time in the field or during harvest. Achieving higher realized yield is where harvest aids will benefit by allowing more timely harvest and less green sorghum or weedy biomass having to be processed by the combine. A two-year study at Oklahoma State University found yields for sorghum treated with harvest aids resulted in an average increase around 7 bushels per acre in Stillwater and just over 5 bushels per acre in Goodwell compared to sorghum not treated with harvest aids (Figure 4). These results showed very similar yields between glyphosate and sodium chlorate, indicating that both products are viable harvest aids in Oklahoma sorghum production.

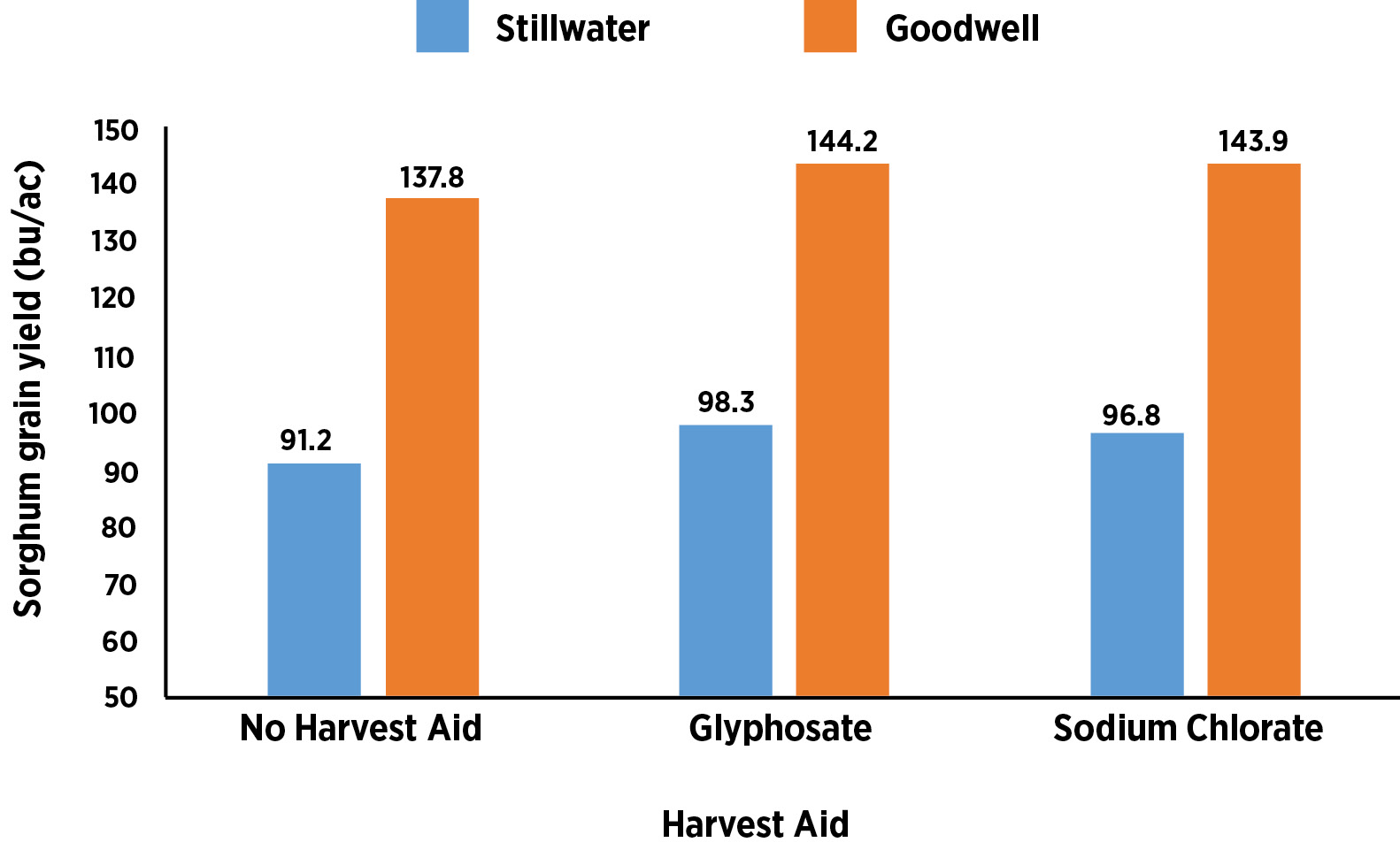

A bar graph with blue being Stillwater and orange being Goodwell. This bar graph shows the different harvest aids (No harvest aid, Glyphosate, and Sodium Chlorate) along with the Soeghum grainn yield (bu/ac) from 50 to 150.

Figure 4. The impact of harvest aids on harvested grain sorghum yields in Stillwater and Goodwell, Oklahoma.



Management of late-season weeds:

Beyond controlling crop maturity, other advantages such as management of late-season weeds can be attributed to harvest aid applications. In many sorghum fields, grassy weeds are an annual concern. Johnsongrass is one of the more difficult weeds to manage in sorghum production systems. Johnsongrass poses a greater challenge due to its more perennial nature, lack of ability to control through tillage and limited in-season options. Using harvest aids can help to control rhizomial John-songrass that may be present in successive years. During late-summer and early fall, Johnsongrass will translocate nutrients, sugars and energy developed during its growing season to the rhizomes. These stored materials are vital for the successive year’s growth. Late applications of harvest aids can minimize the translocation of these materials and therefore start to drain the resources those rhizomes will have for future seasons. Furthermore, when using glyphosate as a harvest aid, the plant will actually translocate the herbicide to the rhizome, effectively allowing for herbicide to damage the rhizome.



Data collected in Perkins, Oklahoma, has shown that the application of glyphosate as a harvest aid significantly reduced Johnsongrass populations in the following year’s crop. While sorghum is not typically grown in continuous production in Oklahoma, sorghum grown following a sorghum crop that had a harvest aid applied to it had nearly 45% lower population of Johnsongrass compared to untreated.



Impacts of forage nitrate concentration:

Nitrate issues in grain sorghum, specifically in sorghum intended for grazing, are a recurrent issue. Stress events are one of the primary factors for increased nitrate levels in the plant. As these applications can be considered a stress event, concern increases over the potential of these applications with a growing risk of nitrate levels in the plant. Recent research has evaluated the impacts of desiccation of grain sorghum residue following harvest. The study looked at applying glyphosate at black layer (early) or black layer and 30% grain moisture (timely) and compared it to a no harvest aid desiccant treatment. Overall, these applications had no negative impact on sorghum forage nitrate, in fact, these applications showed a general downward trend in nitrate levels (Figure 5), with timely desiccation treatments having the lowest nitrate levels.

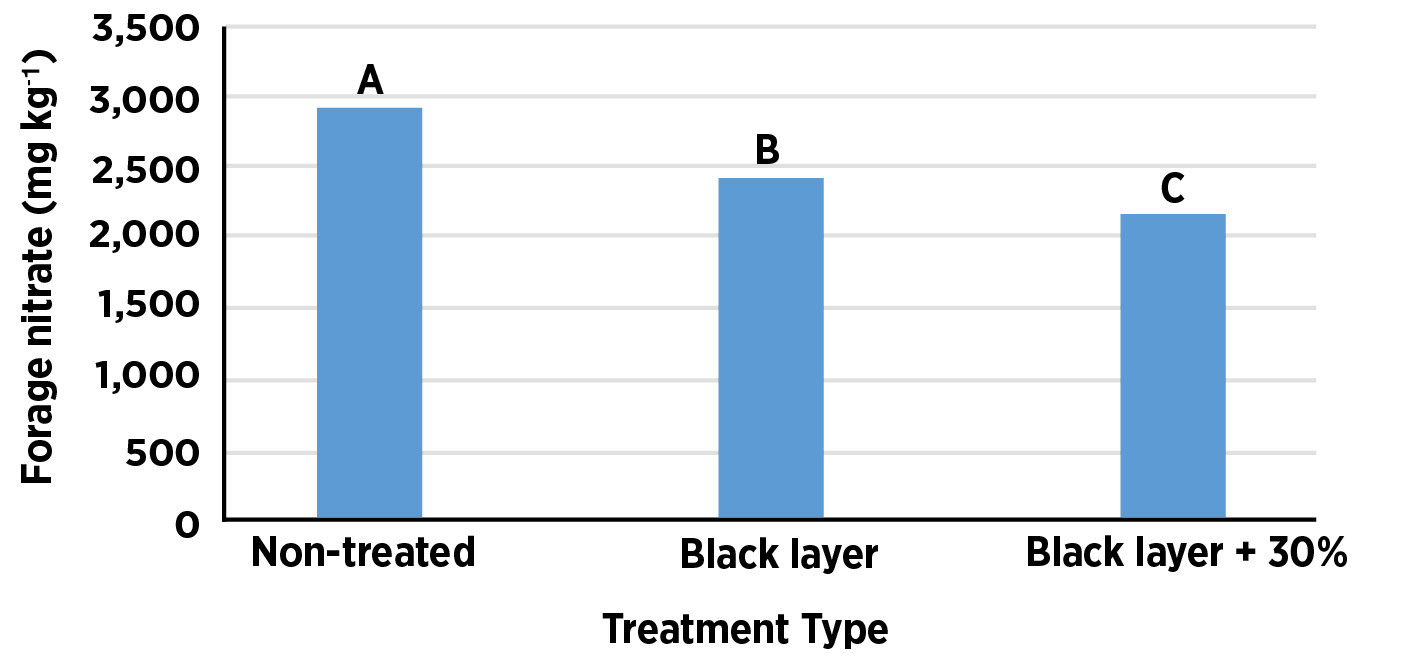

A bar graph with blue to indicate the Forage nitrate (mg kg) (between 0 to 3,500) used during the treamtment type (Non-treated, Black layer or Black layer +30%).

Figure 5. Impact of chemical desiccant (glyphosate) on grain sorghum nitrate levels following harvest.



When we evaluate what chemical desiccation does to the plant, these applications can terminate younger growth and meristematic tissue (tissue where new growth develops). This can limit regrowth in the field, resulting in a lesser risk of nitrate accumulation in this immature tissue or regrowth. Chemical desiccation should not be considered a method for managing forage nitrate levels. Still, the evidence suggests the use of harvest aid desiccants does not increase plant nitrate levels.
